EM10
VIDEO CONFERENCE BAR

All-in-one 4K UHD
USB Video Soundbar
Auto-Framing
Intelligent Voice Tracking

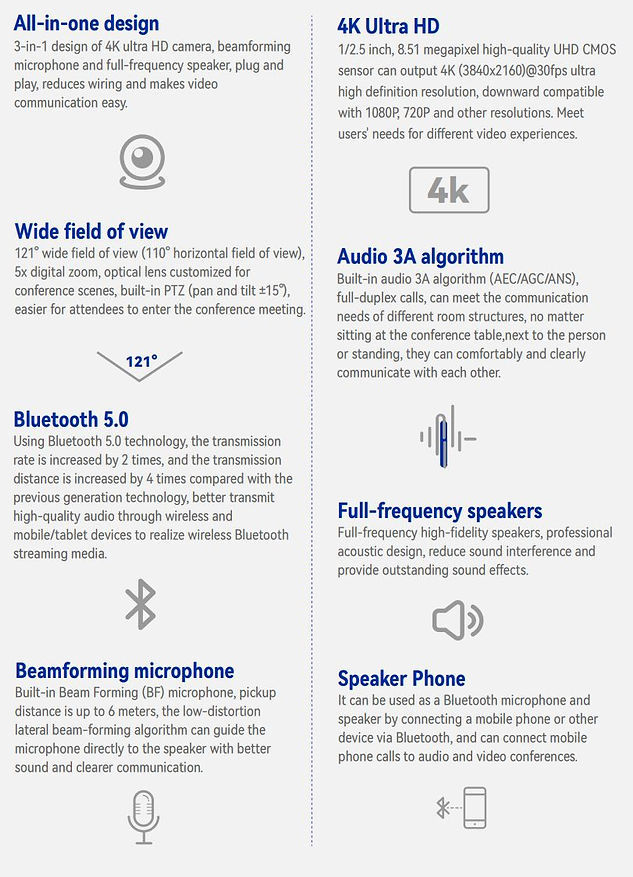

EM10 is equipped with a 1/2.5-inch, 8.51 megapixel high-quality UHD CMOS sensor, which can output 4K (3840x2160)@30fps Ultra high definition image, downward compatible with 1080P, 720P and other resolutions. Meet users needs for different video experiences. It is specially designed for small and medium-sized conference rooms, 4 to 15 people.

EM10-3 copy.jpg

121° wide field of view (110° horizontal field of view), built-in PTZ (pan and tilt ±15°), easier for attendees to enter the conference meeting.


Easy to connect over USB cable to PC or MAC .


3-in-1 design of 4K ultra HD camera, beamforming microphone and full-frequency speaker, plug and play, reduces wiring and makes video communication easy

Specifications

Camera

  • Video Resolution:4K/30, 1080P/30, 720P/30 etc

  • Compression: H.264 / MJPEG /YUY2 /NV12

  • Sensor:1/2.5 inches, CMOS, Effective Pixels

  • Lens:121° (DFOV), 110° (HFOV), 75° (VFOV),

  • 5x digital zoom,Horizontal/pitch ±15°

  • Tripod Head:Mechanical PTZ (MPT) + e-PTZ (EPTZ)

  • Digital Noise Reduction :2D & 3D Digital Noise Reduction

  • S/N Ratio:≥ 55dB

  • Backlight Compensation :Support

USB Features

  • Type of Connection :USB 3.0, backward compatible with USB 2.0

  • Color System / Compression: MJPEG /YUY2

  • USB Audio:32K sampling rate, UAC1.0 support

  • USB Video Communication Protocol:UVC 1.1

  • UVC PTZ Control:Support

Other

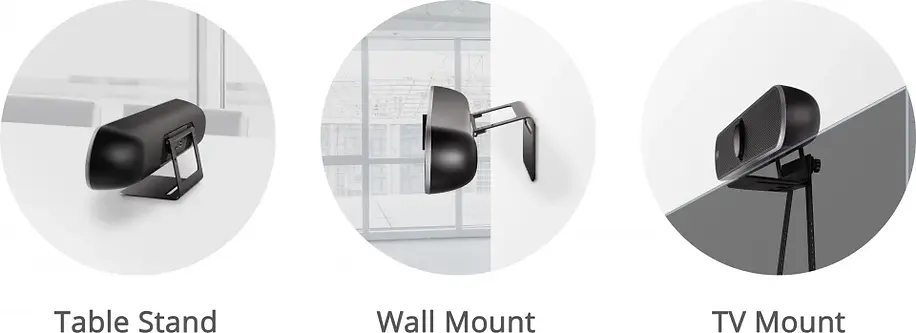

  • Installation Method:A variety of installation options supported, including desktop placement, wall mounting, installation with wall-mounted TV, etc.

  • Supplied Cables:USB Cable

  • Safety Protection:Kensington Lock

  • Bluetooh 5.0

Audio

  • Full-Frequency Speaker:96 dB SPL at 0.5 m

  • Microphone Array:Beamforming microphone with a pickup distance of 6m / 20 feet

  • Sensitivity -38 dB

  • Expansion MIC:Support (Optional)

  • Beamforming Microphone

  • 4 Microphones

  • Internal Speakers: 8W

  • 32K sampling rate, high-definition broadband audio, full-duplex voice / Auto Echo cancellation / Auto Noise suppression / Auto Gain control

I/O Interface

  • HD Output:1 x HDMI, Version 1.4b

  • RJ45-Ethernet Port

  • USB Interface:1 x USB3.0, Type C; 1 x USB2.0, Type A

  • Wireless:Bluetooth data communication (Bluetooth 5.0)

General Specifications

  • Power Supply:DC 12V, 2A (Max.)

  • Operating Temperature:0° C ~ 40° C

  • Storage Temperature:40° C ~ 60° C

  • Size:601mm x 141mm x 115mm

  • Net weight:2.5 Kg

  • EM10, Documentation, Remote Control, Power Adapter, Bracket, USB Type-C Cable, Bracket Screw x 6, Wall Anchor x 6
